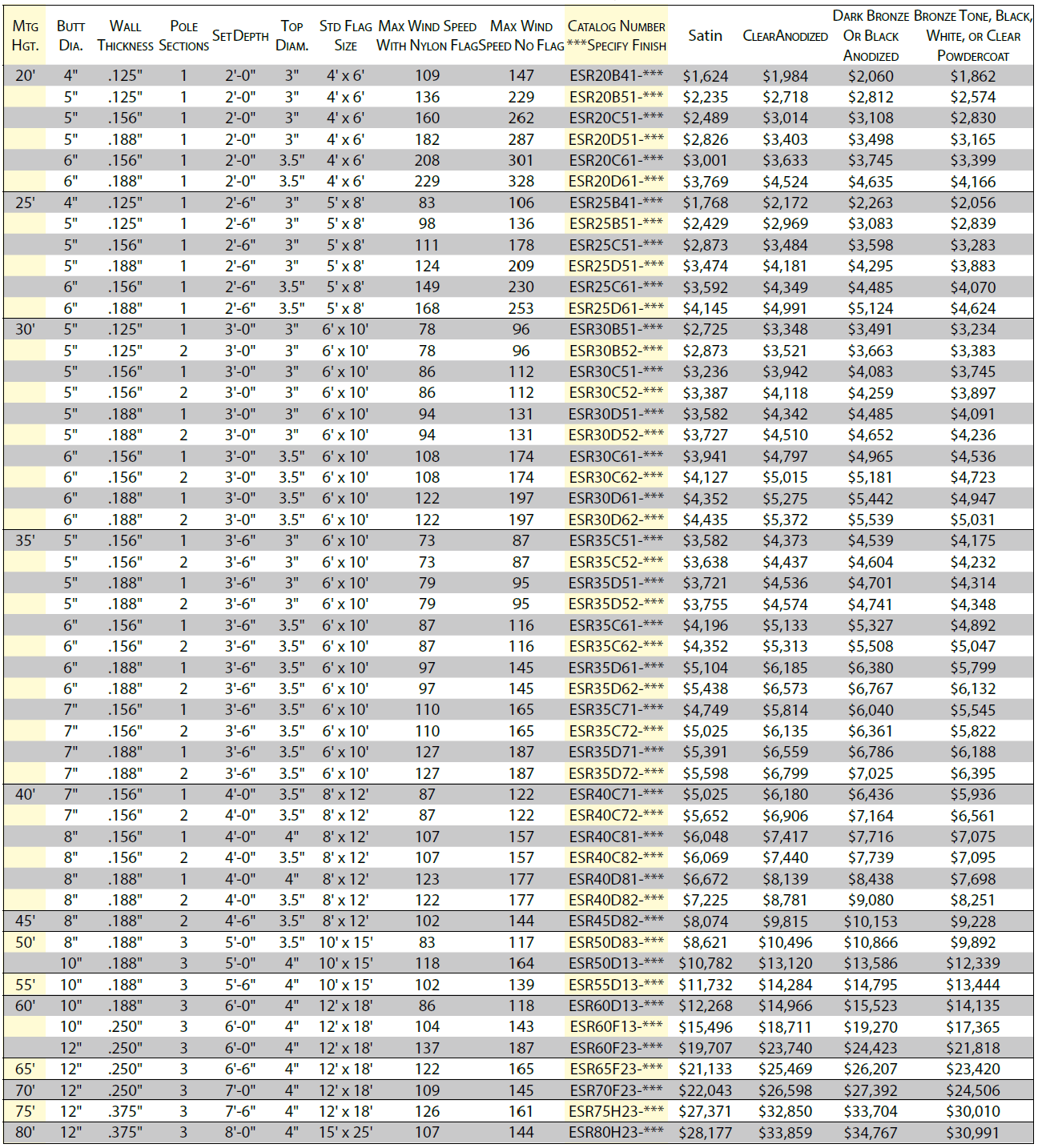

| HEIGHT | BUTT DIAMETER |
WALL THICKNESS | POLE SECTIONS |
SET DEPTH |
TOP DIA. |
SATIN FINISH |
CLEAR
ANODIZED
|
DARK BRONZE
OR BLACK
ANODIZED
|
POWDERCOAT
|
| 20' | 4" | .125" | 1 | 2'-0" | 3" | $1,103 | $1,280 | $1,337 | $1,242 |
| 5" | .125" | 1 | 2'-0" | 3" | $1,517 | $1,712 | $1,811 | $1,661 | |
| 5" | .156" | 1 | 2'-0" | 3" | $1,691 | $1,894 | $1,984 | $1,838 | |
| 5" | .188" | 1 | 2'-0" | 3" | $1,919 | $2,122 | $2,214 | $2,060 | |
| 6" | .156" | 1 | 2'-0" | 3.5" | $2,038 | $2,282 | $2,331 | $2,213 | |
| 6" | .188" | 1 | 2'-0" | 3.5" | $2,560 | $2,805 | $2,855 | $2,721 | |
| 25' | 4" | .125" | 1 | 2'-6" | 3" | $1,201 | $1,377 | $1,475 | $1,336 |
| 5" | .125" | 1 | 2'-6" | 3" | $1,650 | $1,913 | $2,011 | $1,855 | |
| 5" | .156" | 1 | 2'-6" | 3" | $1,951 | $2,215 | $2,314 | $2,148 | |
| 5" | .188" | 1 | 2'-6" | 3" | $2,359 | $2,617 | $2,722 | $2,538 | |
| 6" | .156" | 1 | 2'-6" | 3.5" | $2,440 | $2,751 | $2,871 | $2,668 | |
| 6" | .188" | 1 | 2'-6" | 3.5" | $3,012 | $3,301 | $3,358 | $3,201 | |
| 30' | 5" | .125" | 1 | 3'-0" | 3" | $1,850 | $2,162 | $2,268 | $2,098 |
| 5" | .125" | 2 | 3'-0" | 3" | $1,951 | $2,262 | $2,367 | $2,194 | |
| 5" | .156" | 1 | 3'-0" | 3" | $2,197 | $2,509 | $2,615 | $2,433 | |
| 5" | .156" | 2 | 3'-0" | 3" | $2,301 | $2,612 | $2,717 | $2,533 | |
| 5" | .188" | 1 | 3'-0" | 3" | $2,432 | $2,744 | $2,848 | $2,661 | |
| 5" | .188" | 2 | 3'-0" | 3" | $2,530 | $2,795 | $2,946 | $2,710 | |
| 6" | .156" | 1 | 3'-0" | 3.5" | $2,676 | $3,034 | $3,161 | $2,944 | |
| 6" | .156" | 2 | 3'-0" | 3.5" | $2,802 | $3,161 | $3,287 | $3,066 | |
| 6" | .188" | 1 | 3'-0" | 3.5" | $2,815 | $3,174 | $3,301 | $3,079 | |
| 6" | .188" | 2 | 3'-0" | 3.5" | $2,955 | $3,315 | $3,442 | $3,216 | |
| 35' | 5" | .125" | 1 | 3'-6" | 3" | $1,914 | $2,099 | $2,282 | $2,037 |
| 5" | .156" | 1 | 3'-6" | 3" | $2,432 | $2,791 | $2,931 | $2,707 | |
| 5" | .156" | 2 | 3'-6" | 3" | $2,471 | $2,831 | $2,970 | $2,744 | |
| 5" | .188" | 1 | 3'-6" | 3" | $2,527 | $2,886 | $3,026 | $2,800 | |
| 5" | .188" | 2 | 3'-6" | 3" | $2,550 | $2,908 | $3,050 | $2,821 | |
| 6" | .156" | 1 | 3'-6" | 3.5" | $2,849 | $3,269 | $3,444 | $3,171 | |
| 6" | .156" | 2 | 3'-6" | 3.5" | $2,955 | $3,375 | $3,551 | $3,274 | |
| 6" | .188" | 1 | 3'-6" | 3.5" | $3,466 | $3,886 | $4,032 | $3,768 | |
| 6" | .188" | 2 | 3'-6" | 3.5" | $3,693 | $4,113 | $4,289 | $3,989 | |
| 7" | .156" | 1 | 3'-6" | 3.5" | $3,225 | $3,731 | $3,914 | $3,619 | |
| 7" | .156" | 2 | 3'-6" | 3.5" | $3,412 | $3,926 | $4,103 | $3,808 | |
| 7" | .188" | 1 | 3'-6" | 3.5" | $3,661 | $4,168 | $4,350 | $4,043 | |
| 7" | .188" | 2 | 3'-6" | 3.5" | $3,801 | $4,314 | $4,492 | $4,185 | |
| 40' | 7" | .156" | 1 | 4'-0" | 3.5" | $3,412 | $3,943 | $4,122 | $3,824 |
| 7" | .156" | 2 | 4'-0" | 3.5" | $3,838 | $4,478 | $4,691 | $4,344 | |
| 8" | .156" | 1 | 4'-0" | 4" | $4,108 | $4,683 | $4,865 | $4,543 | |
| 8" | .156" | 2 | 4'-0" | 3.5" | $4,122 | $4,763 | $4,960 | $4,620 | |
| 8" | .188" | 1 | 4'-0" | 4" | $4,531 | $5,215 | $5,433 | $5,059 | |
| 8" | .188" | 2 | 4'-0" | 3.5" | $4,906 | $5,590 | $5,810 | $5,422 | |
| 45' | 8" | .188" | 2 | 4'-6" | 3.5" | $5,483 | $6,194 | $6,468 | $6,009 |
| 50' | 8" | .188" | 3 | 5'-0" | 3.5" | $5,912 | $6,704 | $7,026 | $6,503 |
| 10" | .188" | 3 | 5'-0" | 4" | $7,394 | $8,356 | $8,741 | $8,104 | |
| 55' | 10" | .188" | 3 | 5'-6" | 4" | $8,044 | $9,005 | $9,398 | $8,735 |
| 60' | 10" | .188" | 3 | 6'-0" | 4" | $8,412 | $9,555 | $9,984 | $9,268 |
| 10" | .250" | 3 | 6'-0" | 4" | $10,626 | $11,769 | $12,204 | $11,416 | |
| 12" | .250" | 3 | 6'-0" | 4" | $13,513 | $14,894 | $15,385 | $14,448 | |
| 65' | 10" | .312" | 3 | 6'-6" | 4" | $12,784 | $14,163 | $14,648 | $13,738 |
| 12" | .250" | 3 | 6'-6" | 4" | $14,491 | $15,946 | $16,473 | $15,467 | |
| 70' | 10" | .312" | 3 | 7'-0" | 4" | $13,143 | $14,525 | $15,017 | $14,089 |
| 12" | .250" | 3 | 7'-0" | 4" | $15,115 | $16,651 | $17,213 | $16,152 | |
| 75' | 12" | .375" | 3 | 7'-6" | 4" | $18,768 | $20,624 | $21,414 | $20,005 |
| 80' |
12" | .375" | 3 | 8'-0" | 4" | $19,321 | $21,175 | $21,965 | $20,541 |
| 12" | .375" | 4 | 8'-0" | 4" | $18,958 | $20,790 | $21,629 | $20,205 |
