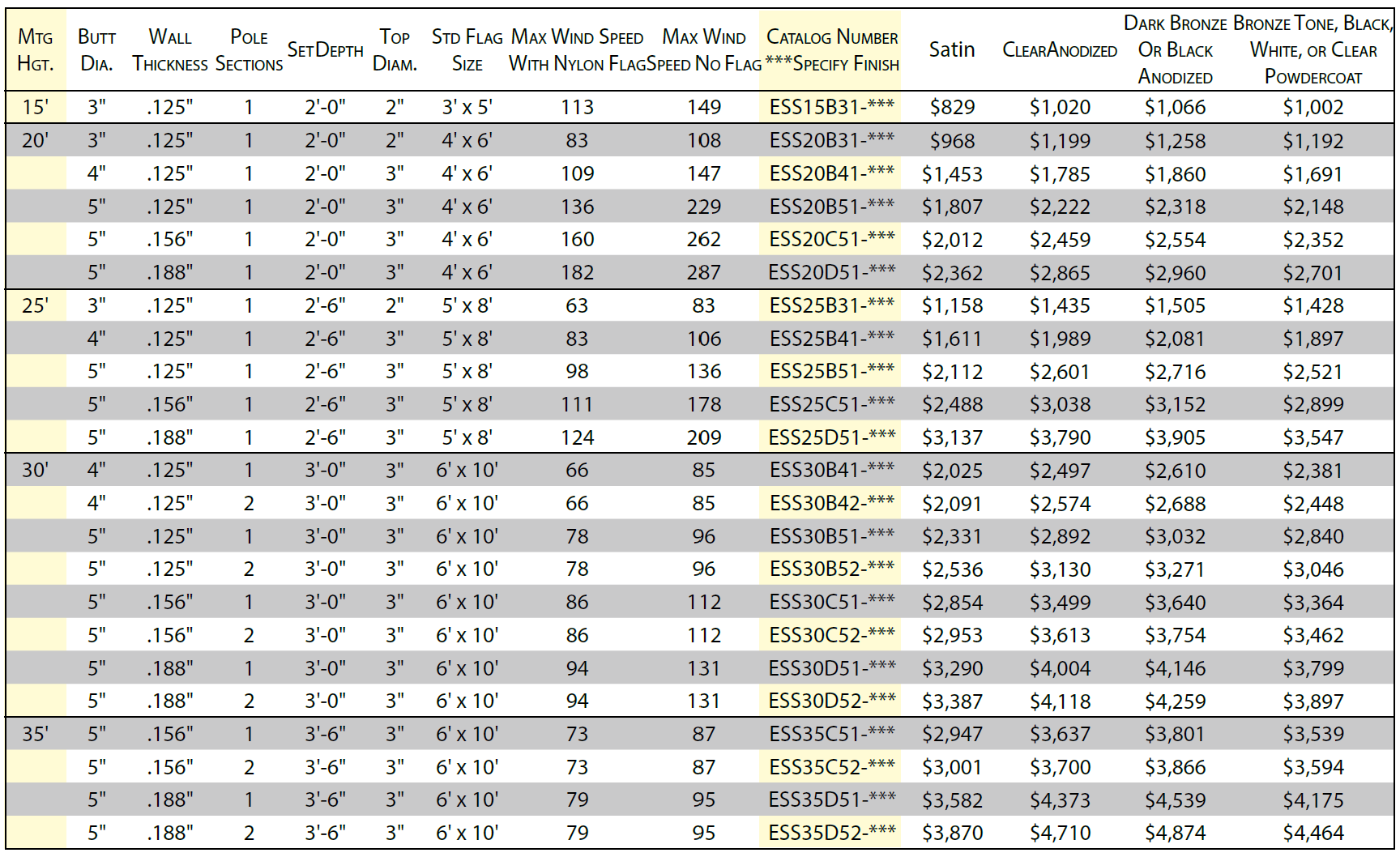

| HEIGHT |
BUTT
DIAMETER
|
WALL THICKNESS
|
POLE
SECTIONS
|
SET
DEPTH
|
TOP
DIA.
|
SATIN FINISH |
CLEAR
ANODIZED
|
DARK BRONZE
OR BLACK
ANODIZED
|
POWDERCOAT
|
| 15' | 3" | .125" | 1 | 2'-0" | 2" | $563 | $651 | $692 | $632 |
| 20' | 3" | .125" | 1 | 2'-0" | 2" | $657 | $782 | $808 | $758 |
| 4" | .125" | 1 | 2'-0" | 3" | $986 | $1,162 | $1,219 | $1,127 | |
| 5" | .125" | 1 | 2'-0" | 3" | $1,228 | $1,423 | $1,522 | $1,381 | |
| 5" | .156" | 1 | 2'-0" | 3" | $1,367 | $1,571 | $1,661 | $1,524 | |
| 5" | .188" | 1 | 2'-0" | 3" | $1,604 | $1,807 | $1,898 | $1,753 | |
| 25' | 3" | .125" | 1 | 2'-6" | 2" | $786 | $939 | $1,018 | $911 |
| 4" | .125" | 1 | 2"-6" | 3" | $1,094 | $1,268 | $1,354 | $1,230 | |
| 5" | .125" | 1 | 2"-6" | 3" | $1,434 | $1,698 | $1,797 | $1,647 | |
| 5" | .156" | 1 | 2"-6" | 3" | $1,690 | $1,954 | $2,052 | $1,895 | |
| 5" | .188" | 1 | 2'-6" | 3" | $2,130 | $2,394 | $2,492 | $2,321 | |
| 30' | 4" | .125" | 1 | 3'-0" | 2" | $1,174 | $1,416 | $1,520 | $1,374 |
| 4" | .125" | 2 | 3'-0" | 2" | $1,254 | $1,497 | $1,600 | $1,452 | |
| 5" | .125" | 1 | 3'-0" | 3" | $1,582 | $1,894 | $2,000 | $1,838 | |
| 5" | .125" | 2 | 3'-0" | 3" | $1,723 | $2,034 | $2,140 | $1,974 | |
| 5" | .156" | 1 | 3'-0" | 3" | $1,938 | $2,250 | $2,536 | $2,182 | |
| 5" | .156" | 2 | 3'-0" | 3" | $2,005 | $2,316 | $2,421 | $2,246 | |
| 5" | .188" | 1 | 3'-0" | 3" | $2,234 | $2,546 | $2,652 | $2,469 | |
| 5" | .188" | 2 | 3'-0" | 3" | $2,301 | $2,612 | $2,717 | $2,533 | |
| 35' | 5" | 125" | 1 | 3'-6" | 3" | $1,867 | $2,225 | $2,366 | $2,158 |
| 5" | .125" | 2 | 3'-6" | 3" | $1,976 | $2,352 | $2,450 | $2,253 | |
| 5" | .156" | 1 | 3'-6" | 3" | $2,001 | $2,377 | $2,593 | $2,277 | |
| 5" | .156" | 2 | 3'-6" | 3" | $2,038 | $2,396 | $2,537 | $2,324 | |
| 5" | .188" | 1 | 3'-6" | 3" | $2,433 | $2,791 | $2,931 | $2,706 | |
| 5" | .188" | 2 | 3'-6" | 3" | $2,629 | $2,995 | $3,120 | $2,923 |
