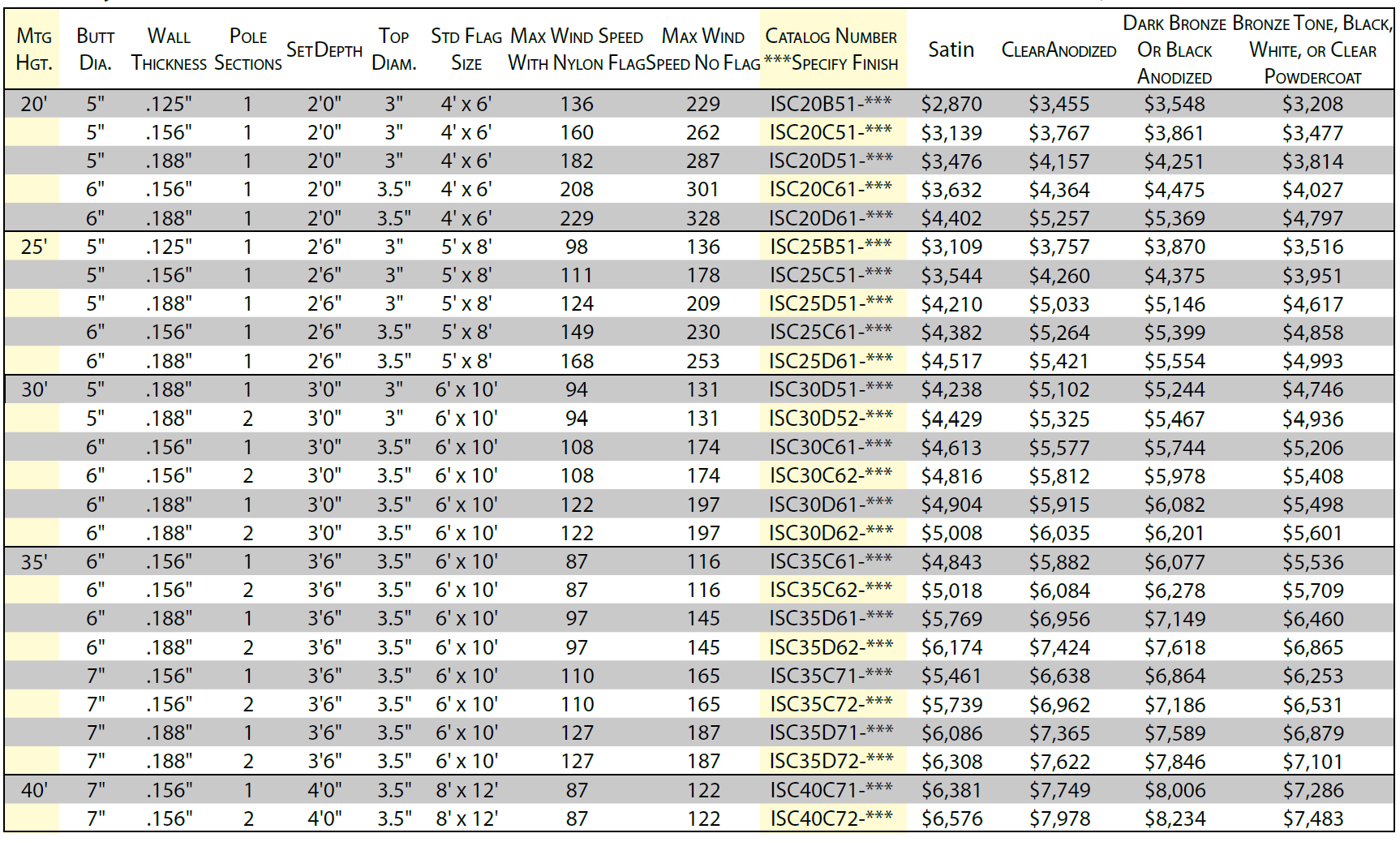

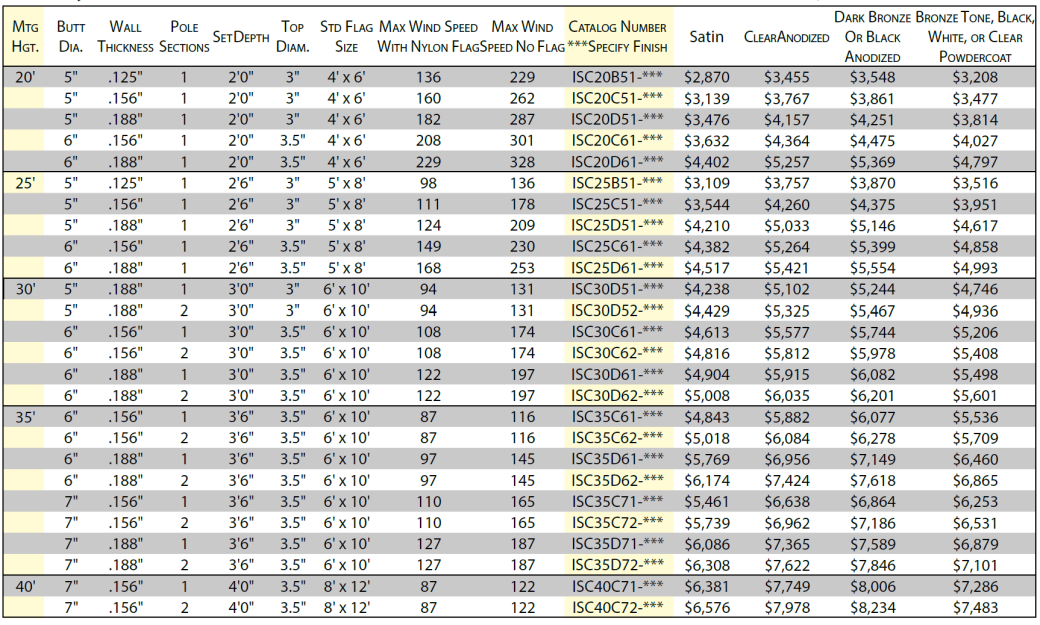

| HEIGHT |
BUTT
DIAMETER
|
WALL THICKNESS
|
POLE
SECTIONS
|
SET
DEPTH
|
TOP
DIA.
|
SATIN FINISH |
CLEAR
ANODIZED
|
DARK BRONZE
OR BLACK
ANODIZED
|
POWDERCOAT
|
| 20' | 5" | .125" | 1 | 2'0" | 3" | $1,718 | $1,896 | $1,972 | $1,840 |
| 5" | .125" | 1 | 2'0" | 3" | $1,879 | $2,058 | $2,135 | $1,996 | |
| 5" | .188" | 1 | 2'0" | 3" | $2,081 | $2,260 | $2,337 | $2,192 | |
| 6" | .156" | 1 | 2'0" | 3.5" | $2,174 | $2,386 | $2,428 | $2,315 | |
| 6" | .188" | 1 | 2'0" | 3.5" | $2,635 | $2,848 | $2,889 | $2,763 | |
| 25' | 5" | .125" | 1 | 2'6" | 3" | $1,861 | $2,093 | $2,177 | $2,031 |
| 5" | .156" | 1 | 2'6" | 3" | $2,121 | $2,353 | $2,436 | $2,282 | |
| 5" | .188" | 1 | 2'6" | 3" | $2,520 | $2,745 | $2,834 | $2,663 | |
| 6" | .156" | 1 | 2'6" | 3.5" | $2,623 | $2,849 | $2,937 | $2,764 | |
| 6" | .188" | 1 | 2'6" | 3.5" | $2,703 | $2,971 | $3,077 | $2,882 | |
| 30' | 5" | .156" | 1 | 3'0" | 3" | $2,323 | $2,596 | $2,685 | $2,517 |
| 5" | .156" | 2 | 3'0" | 3" | $2,416 | $2,689 | $2,777 | $2,608 | |
| 5" | .188" | 1 | 3'0" | 3" | $2,536 | $2,810 | $2,898 | $2,726 | |
| 5" | .188" | 2 | 3'0" | 3" | $2,652 | $2,925 | $3,013 | $2,838 | |
| 6" | .156" | 1 | 3'0" | 3.5" | $2,761 | $3,076 | $3,183 | $2,984 | |
| 6" | .156" | 2 | 3'0" | 3.5" | $2,882 | $3,197 | $3,304 | $3,102 | |
| 6" | .188" | 1 | 3'0" | 3.5" | $2,936 | $3,186 | $3,293 | $3,091 | |
| 6" | .188" | 2 | 3'0" | 3.5" | $2,998 | $3,318 | $3,425 | $3,218 | |
| 35' | 5" | .156" | 1 | 3'6" | 3" | $2,536 | $2,851 | $2,970 | $2,766 |
| 5" | .156" | 2 | 3'6" | 3" | $2,617 | $2,930 | $3,049 | $2,843 | |
| 5" | .188" | 1 | 3'6" | 3" | $2,652 | $2,966 | $3,085 | $2,878 | |
| 5" | .188" | 2 | 3'6" | 3" | $2,882 | $3,197 | $3,316 | $3,102 | |
| 6" | .156" | 1 | 3'6" | 3.5" | $2,899 | $3,267 | $3,416 | $3,169 | |
| 6" | .156" | 2 | 3'6" | 3.5" | $3,003 | $3,371 | $3,520 | $3,270 | |
| 6" | .188" | 1 | 3'6" | 3.5" | $3,453 | $3,820 | $3,969 | $3,706 | |
| 6" | .188" | 2 | 3'6" | 3.5" | $3,695 | $4,063 | $4,212 | $3,941 | |
| 7" | .156" | 1 | 3'6" | 3.5" | $3,269 | $3,714 | $3,868 | $3,602 | |
| 7" | .156" | 2 | 3'6" | 3.5" | $3,435 | $3,886 | $4,035 | $3,770 | |
| 7" | .188" | 1 | 3'6" | 3.5" | $3,643 | $4,088 | $4,242 | $3,966 | |
| 7" | .188" | 2 | 3'6" | 3.5" | $3,776 | $4,221 | $4,736 | $4,095 | |
| 40' | 7" | .156" | 1 | 4'0" | 3.5" | $3,819 | $4,302 | $4,466 | $4,173 |
| 7" | .156" | 2 | 4'0" | 3.5" | $3,937 | $4,443 | $4,584 | $4,310 |
